Product information "LOBA LO470P 2.5TFSI Upgrade Sport turbocharger"

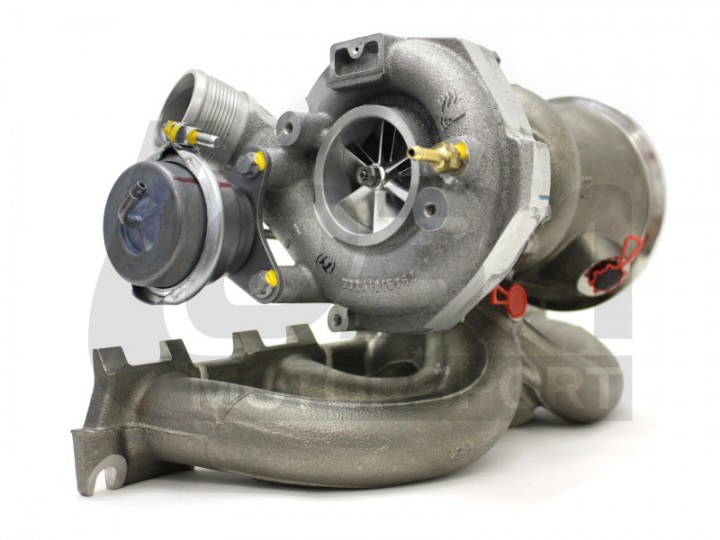

LOBA LO470P TTRS / RS3 2.5TFSI Upgrade Sport turbocharger
We take a factory brand new OE BorgWarner turbocharger and optimize with 5-AXIS CNC machining processes to reduce back pressure, we utilize the latest new improved V3 LO-3171 LOBA Motorsport forged billet compressor unique in design, geometry and size, but is extremely light in weight at only 39.8 Gram, yet still very strong. LOBA Motorsport forged billet compressor wheels are 25% lighter than some original used cast items and lighter than standard billet types, but still has greater strength and durability over a cast compressor or standard billet types. Being a forged billet the nose and stem of the compressor wheel can be CNC machined significantly smaller to allow for a greater blade area and diameter for inducer size, blades can also be made thinner, so more efficient and flowing more air then say same size billet compressor wheel. The end result is a compressor of extreme lightness, fast unmatched response and superior efficiency. We clip the turbine wheel to reduce back pressure, then fit a reinforced axial bearing for the very best compromise between power output, longevity and turbo response.
LO470P delivers powerful, refined consistent performance, suited for motorsport use.
The following LOBA specific optimizations were applied

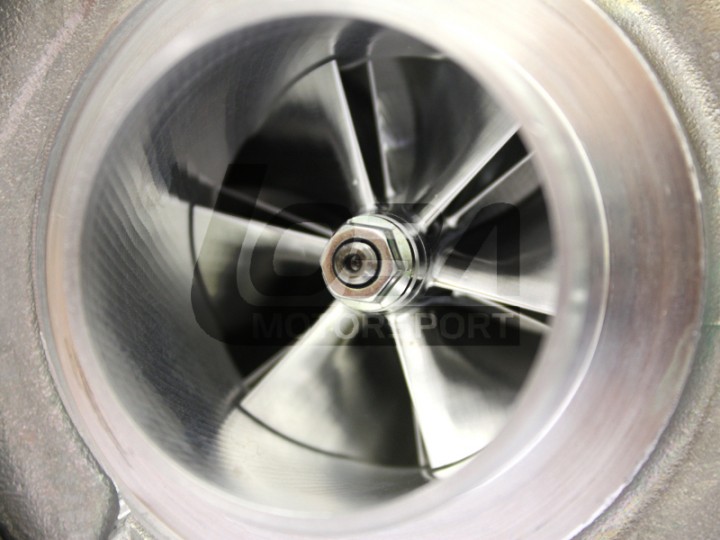

- NEW V3 state-of-the-art LOBA LO-3171“Extended Tip” forged billet compressor wheel (even faster response)
- LOBA 5-axis CNC re-profiled compressor housing and backplate
- LOBA 5-axis CNC machined exhaust manifold
- LOBA clipped turbine wheel
- LOBA optimized clearances
- LOBA modified actuator
- LOBA uprated bearing
- LOBA precision balancing of compressor and turbine wheel (less than 0.05 gmm)
- Made in Germany
Depending on engine management settings, engine condition and other components utilized this turbo is capable of producing more than 470+ PS
Performance engine software required, the software is available through our Technical Support and requires an appointment, by calling the hotline: +49 (0) 8466 / 725914-0
